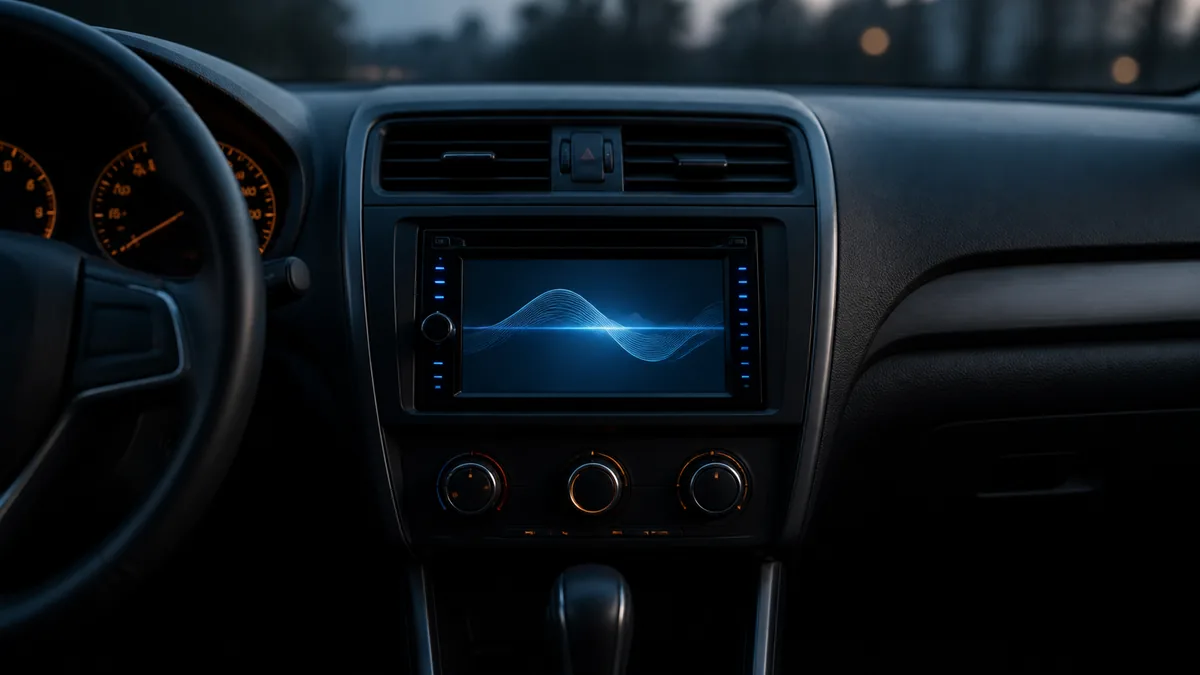

A lit screen proves that part of the receiver has power. It does not prove that the selected source contains audio, mute logic is clear, a factory or aftermarket amplifier has turned on, signal reaches that amplifier, or speakers have a complete output path.
Start by defining the scope. Repeatedly cycling power or changing several settings at once destroys useful evidence.
What still works?
| Observation | First boundary to examine | What it does not prove |
|---|---|---|
| Every source is silent on every speaker | Shared mute/routing, external amplifier, shared signal, or shared supply/control path | The head unit is defective |
| One source is silent but another works | Source device, input selection, playback state, or source-specific routing | The speakers are good under every condition |
| Radio works but phone audio does not | Phone/media volume, input mode, pairing/profile, cable, or interface | The amplifier needs more gain |
| Chimes work but music does not | Vehicle/interface routing may preserve one path while losing another | Factory integration is fully correct |
| One speaker or one side is silent | Channel-specific balance, signal, output, harness, or driver path | A system-wide no-sound fault |
| Amplifier status is abnormal | Decode that model’s indicator before other conclusions | One universal protect-mode cause |
Use the one-speaker diagnostic for a single channel. Use the amplifier-on/no-sound guide when signal reaches an aftermarket amplifier boundary but its outputs remain silent.
Check controls before connections
Confirm the intended source is playing, media volume is not zero, pause and mute are clear, balance/fader have not excluded all installed channels, and the receiver is not in a phone-call, navigation, standby, or attenuation state. Test a second known source without changing the rest of the system.
These checks are reversible and do not require opening the vehicle. A reset is not the first step: it can erase configuration and still leave the actual integration fault untouched.
Identify every active device in the path
An OEM screen can feed a separate factory amplifier over analog wiring or a vehicle data/network path. An aftermarket receiver may feed a line-output converter, interface, DSP, then one or more amplifiers. “Radio has power” describes only one node.
Create a record from the exact vehicle wiring information and product manuals:
- source/receiver model and selected output;
- factory amplifier or interface, if present;
- DSP/LOC and its status indicators;
- aftermarket amplifier and its exact mode;
- affected output channels and speakers.
The signal-path map explains these boundaries. Connector shape alone does not prove signal content or level.
Treat status indicators as product-specific
KICKER’s KXMA manual lists model-specific checks for no output and protection, including power, remote turn-on, signal, output connections, balance/fader, mute, and load conditions. AudioControl’s Epicenter amplifier manual uses its own status and fault indications. Their differences are why a light color found on a forum cannot diagnose another model.
Stop before live electrical guessing
Do not probe unidentified vehicle-network wiring, jumper remote leads, short RCA contacts, or disconnect speakers while powered merely to “see what happens.” If the manual requires live voltage or signal measurements, use its reference points, required load state, and power-down sequence with appropriate tools.
Stop for smoke, odor, heat-damaged insulation, a loose high-current terminal, repeated fuse operation, battery damage, or an unknown factory safety/communication harness. A qualified automotive electrician or installer is the correct boundary when the circuit cannot be identified from applicable documentation.
The useful diagnosis is the first node where a known-good state stops—not a guessed replacement part.
Last verified: August 23, 2026.
Sources
- KICKER, 2021 KXMA 5-Channel Amplifier Owner’s Manual.
- AudioControl, Epicenter 600/1200 Amplifier User Manual.
