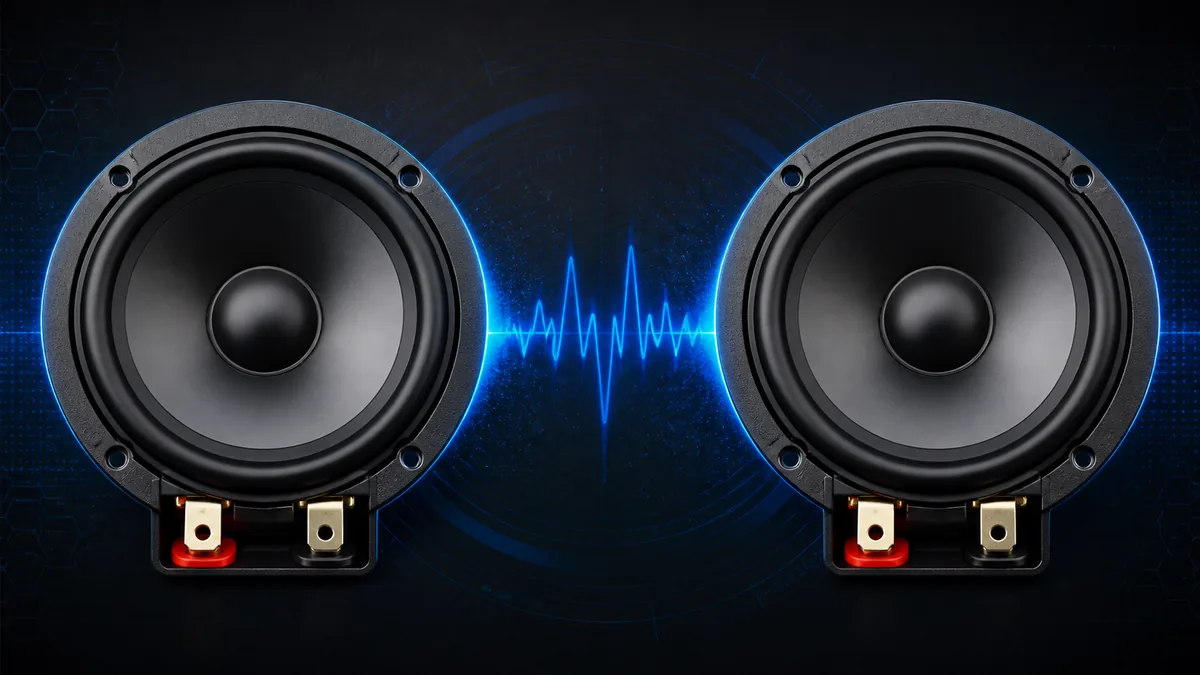

Speaker terminals marked + and − establish a connection reference. They do not mean that a speaker output is a chassis ground, and they do not by themselves describe the entire frequency-dependent phase relationship.
Keep the terms separate
| Term | Meaning | Common mistake |
|---|---|---|
| Polarity | The reference orientation of a driver connection or waveform | Calling every phase difference “reversed wiring” |
| Phase | Frequency-dependent timing/angle relationship | Treating a 0/180 switch as a complete correction |
| Positive/negative terminal | Product reference markings for the pair | Assuming the negative terminal is vehicle chassis ground |
| Out of polarity | One connection reference is inverted relative to another | Declaring the exact wire by color alone |
JBL’s speaker-connection manual explains that inconsistent polarity can reduce bass and stereo image. That is a system relationship, not a universal color code.
A documentation-first order
- Identify the exact vehicle, speaker location, factory connector, amplifier, and channel mode.
- Photograph the original connector and terminal markings before disconnecting anything.
- Use the vehicle wiring diagram or service record to identify the pair and its reference orientation.
- Use the speaker and amplifier manuals to confirm the output topology and load boundary.
- Label both ends before restoring the connection.
- Test at conservative level and compare channels only after every connection is secure.
KICKER’s wiring reference shows product-specific connection patterns. It should not be used to infer a different amplifier’s output topology, bridged-terminal behavior, or vehicle wire color.
Why battery “pop tests” are not a universal answer
Community advice often suggests touching a battery to a disconnected speaker. That method is not a general factory-wiring test: a speaker may remain connected to an amplifier, DSP, vehicle network, passive crossover, airbag-adjacent harness, or other electronics. A battery pulse can damage equipment, create a short, or produce a misleading result on a multi-driver system.
Do not inject DC or an unknown signal into an installed vehicle audio output unless the exact product and service procedure explicitly supports it. Do not assume a bridged amplifier negative is ground, and do not connect a test source across unknown terminals.
Diagnose the symptom that polarity can cause
If reversing one speaker changes bass or image, record the original state and make one controlled change only when the system is safely accessible. If one speaker is silent, use the single-speaker diagnosis; polarity alone does not explain every no-output fault. If a door rattles, use the rattle guide.
Stop for unknown terminal identity, exposed high-current conductors, networked factory outputs, airbag-area wiring, heat, odor, or an instruction that conflicts with the current manual. Correct polarity is important, but safe identification comes first.
Last verified: August 23, 2026.
Sources
- JBL, Speaker Connections.
- KICKER, Wiring Diagrams.
